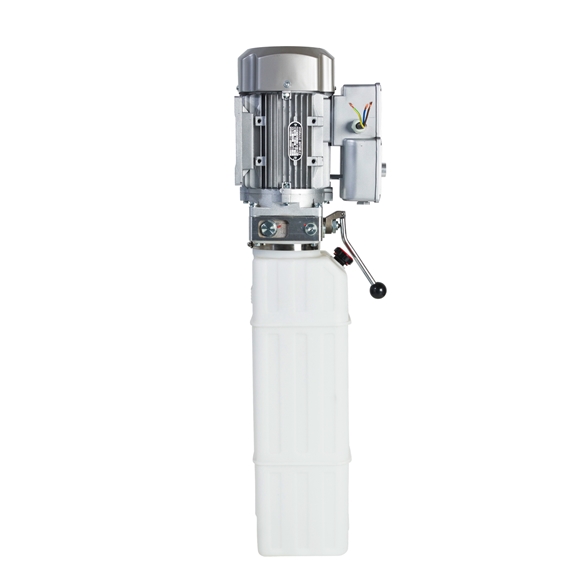

E4G 565205 4 Post Lift Hydraulic Power Unit 3ph. Manual Release with Button 14L

£340.00 Ex VAT

The E4G 565205 Hydraulic Power Unit is perfect for 4 post lifts, featuring a powerful 380v motor, a 14L tank, and both manual release and push button controls for efficient and safe operation.

Product Features:

  • Motor: 380v 3kw 2850rpm 3ph 50hz
  • Aluminum Pump: 2.0CC/R CMD
  • manual release valve
  • Pressure:18Mpa Install union joint M14*1.5-G1/4
  • Install AC contractor and push button

2 in stock

pay in interest free monthly instalments: 3 x £113.33

pay in interest free monthly instalments: 3 x £113.33

Description

Upgrade your 4 post lift system with the E4G 565205 Hydraulic Power Unit, designed for heavy-duty applications and reliable performance. This power unit is equipped with a robust 380v motor and an efficient aluminum pump, ensuring smooth and powerful lifting operations. The manual release valve allows for precise control, while the integrated push button and AC contractor facilitate easy operation. The 14L tank ensures sufficient hydraulic fluid capacity for extended use.

Product Features:

  • Motor: 380v, 3kw, 2850rpm, 3ph, 50hz
  • Aluminum Pump: 2.0CC/R CMD
  • Manual Release Valve: For precise and safe lifting
  • Pressure: 18Mpa
  • Tank Capacity: 14L
  • Installation: Union joint M14*1.5-G1/4
  • Controls: AC contractor and push button

Additional information

Weight 24.6 kg
Dimensions 95 × 36 × 45 cm

Specifications:

  • Motor: 380v 3kw 2850rpm 3ph 50hz
  • Aluminum Pump: 2.0CC/R CMD
  • Manifold Valve
  • Check valve
  • Relief valve
  • Manual release valve
  • Flow control valve
  • Tank:14L
  • Plastic Mounting
  • Vertical Oil Port:M14*1.5″
  • Pressure:18Mpa
  • Install union joint M14*1.5-G1/4″
Install AC contractor and push button
95x24x28cm   22.4kg
